Huawei 24KW Output ETP48400-C3B1 AC/DC Embedded Power System For 5G Sites

The ETP48400-C3B1 is embedded power systems that convert AC power into DC power. They supply –48 V or –57 V constant voltage to telecommunications equipment. The maximum capacity of the ETP48400-C3B1 is 24 kW. It apply to 5G sites as well as capacity expansion and reconstruction of existing sites.

• C3 means 3U chassis, can be installed in a 19-inch rack
• 220/380 V AC three-phase four-wire, compatible with 220 V AC single-phase
• LLVD: 2x125A, 3x63A
• BLVD: 2x63A, 2x32A, 2x16A
• Provides comprehensive battery management
• Site monitoring unit: SMU02C
• User interface module: UIM05B1
• (Optional) Communications expansion module: NIM01C3 or CIM02C
• Recitifier R4875G1 (maximum configure 6 pcs )

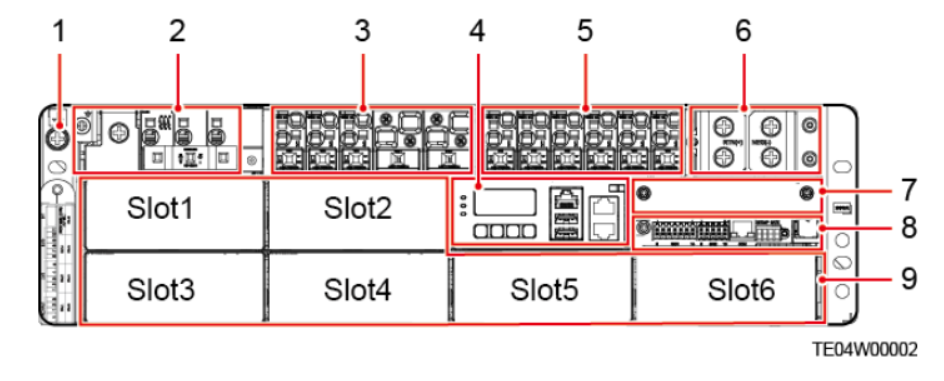

  (1) Ground screw (2) AC input module (3) LLVD power distribution

  (4) SMU02C (5) BLVD power distribution (6) Battery wiring ports

  (7) Reserved slot for CIM02C/NIM01C3 (8) UIM05B1 (9) Space for rectifiers
