24KW AC / DC Power System 48V 57V HUAWEI ETP48400-C4A1 4U

Huawei ETP48400-C4A1 AC/DC embedded power system 24kw for 5G sites

Brand:Huawei

Lead Time:3-5 days

The ETP48400-C4A1 is an embedded power system that converts AC power into DC power. It outputs –48 V and –57 V constant voltages for equipment. Its maximum capacity is 24 kW. The applicable scenarios include 5G sites and capacity expansion and reconstruction of existing sites. It can disconnect each secondary load separately and supports precise metering of the power consumption of each user.

ETP48400-C4A1: C4 means 4U chassis
220/380 V AC three-phase four-wire
Can be installed on a 19-inch rack
Site monitoring unit: SMU02C
User interface module: UIM05B1
(Optional) Communications expansion module: NIM01C3 or CIM02C
Rectifier: R4875G1 75A; R4850G6/R4850G2 50A for choice, R4875G (maximum configure 6 pcs)
SSU: S4850G1 (maximum configure 5 pcs )

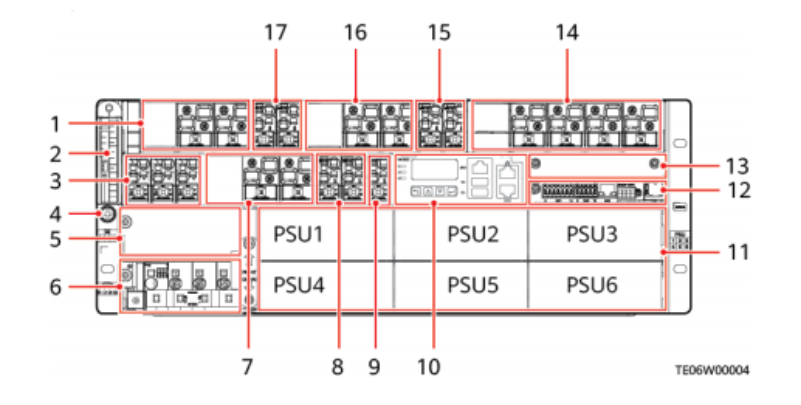

ETP48400-C4A1 (01074762/01075024)

(1) User 1: LLVD power distribution	(2) Power distribution label	(3) AC output circuit breakers
(4) Ground screw	(5) Standby AC input module	(6) AC input module
(7) User 3: LLVD power distribution	(8) User 3: BLVD power distribution	(9) Common load circuit breaker
(10) SMU02C	(11) Space for rectifiers/Space for installing the SSU	(12) UIM05B1
(13) Reserved slot for communications expansion module CIM02C/NIM01C3	(14) Battery circuit breakers	(15) User 2: BLVD power distribution
(16) User 2: LLVD power distribution	(17) User 1: BLVD power distribution
